Portable Density Meter DH-50


Its portable design makes it very easy to take along for a measurement of density and temperature of the product in a tank.

• Floater height value is real-time displayed on the LCD display of the density meter and + 20,000 data can be recorded automatically.

• The data recordings can be transferred to your PC by wireless communication.

• Compact and portable design.


Share:
Portable Density Meter DH-50

Functions:

∗ DH-50 portable density meter is portable design makes it very easy to take along to any tank for a measurement of product density and temperature.

∗ It is used for measuring the temperature and density of the liquid in a tank with the floater being set to stop at preset height points of the liquid.

∗ The floater height value is real-time displayed on the LCD display of the densitometer and up to 20,000 data can be recorded automatically. The data recordings can be transferred to your PC by wireless communication.



Working Principle:

∗ The resonance frequency is proportional to the density of the liquid. The liquid density is derived by the frequency being detected.


Applications:

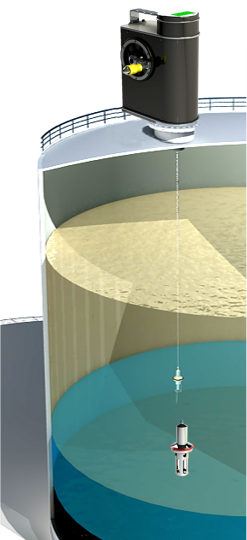

∗ 1. Used for density and temperature measurement of product in above ground tank;

∗ 2. Density and temperature measurement of product loading into the tank truck;

∗ 3. Density measurement for the product loading from truck into the underground tank in oil stations .

♦ Real time density and temperature measurement in high accuracy;

♦ Compact and portable design, very easy to be taken along with;

♦ Measurement data can be saved in real time;

♦ Vertical measurement range is 30+ meters;

♦ Data can be easily downloaded to a PC;

♦ Its high performance in reliability and accuracy has been fully proven.

Item Spec
Measurement Range 0~2000kg/m3
Accuracy for Density ± 0.3~0.5kg/m3
Accuracy for temperature ± 0.1℃(-5℃~+45℃ ) ± 0.3℃(-40℃~+85℃)
Repeatability Error ± 0.1 kg/m3
Allowed Humidity 90%
Working Temperature -40 ℃~ 70℃
Calibration Stability <± 0.1kg/m3(each year)
Temperature Compensation Automatic
Communication 433MHz wireless communication
Material for the measurement parts in the liquid Stainless Steel 316, 3J58, Hastelloy
Protection Class IP68 for sensor, IP65 for other parts
Explosion-Proof Rating Ex ia IIc T4Ga
