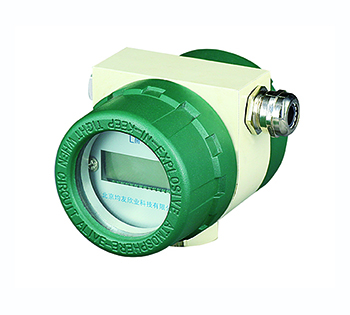

Electronic Flow Display - LM-I
Used for real-time displays the accumulated volume and the flow rate on site by acquiring the accumulated pulse data from the mechanical flow meter.
Share:
Functions:
∗ This module real-time accumulates the pulse data acquired from the mechanical flow meter, and displays the accumulated volume and the flow rate on the site .
∗ Shutdown data protection is available, and
∗ The signals can be transmitted to remote spots.
Applications:
∗ It is designed for acquiring the accumulated flow data from a mechanical flow meter and transmitting the data to a remote spot.
| Item | Spec |
| Power Supply | 24V/DC |
| Power Consumption | 0.1 W |
| Signal Input | pulse |
| Signal Voltage Range | low level 0-0.7V/DC; high level 3-24V/DC |
| Data Input | RS 485 RTU protocol |
| Onsite Display | LCD display for flow rate and accumulated amount |
| Cable Outlet | 1/2 NPT X 2 |
| Protection Class | IP 65 |
| Lightening Protection | triple lightening protection |
| Data Shutdown Protection | >12 years |
| Explosion Proof Rating | Ex d IIB T4 Gb |
