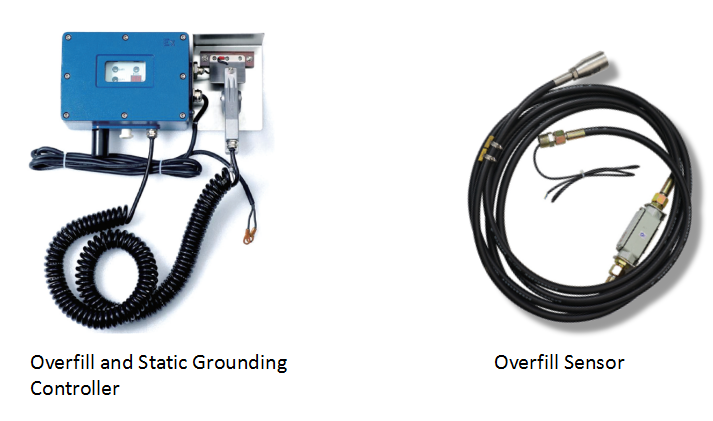

Overfill and Static Protection Alarming Module - BJJY-II-A (for Top-Loading)
Used for static grounding inspection and overfill protection alarming during a Top-Loading is in processing.
• API standard adaptor is adopted, which is compatible with international standard designs;
• High reliability in life span;
• Built-in lightning surge protection;
• Independent alarming for the electrostatic detection and the overfill protection;
• Available for both sound and light alarming;
• Skid mounted structure for easy installation.
Functions:
∗ This module is used for static grounding inspection and overfill protection alarming during a Top-Loading is in processing.
∗ It alarms immediately whenever an overfill is going to happen or a bad grounding connection is detected.
Applications:

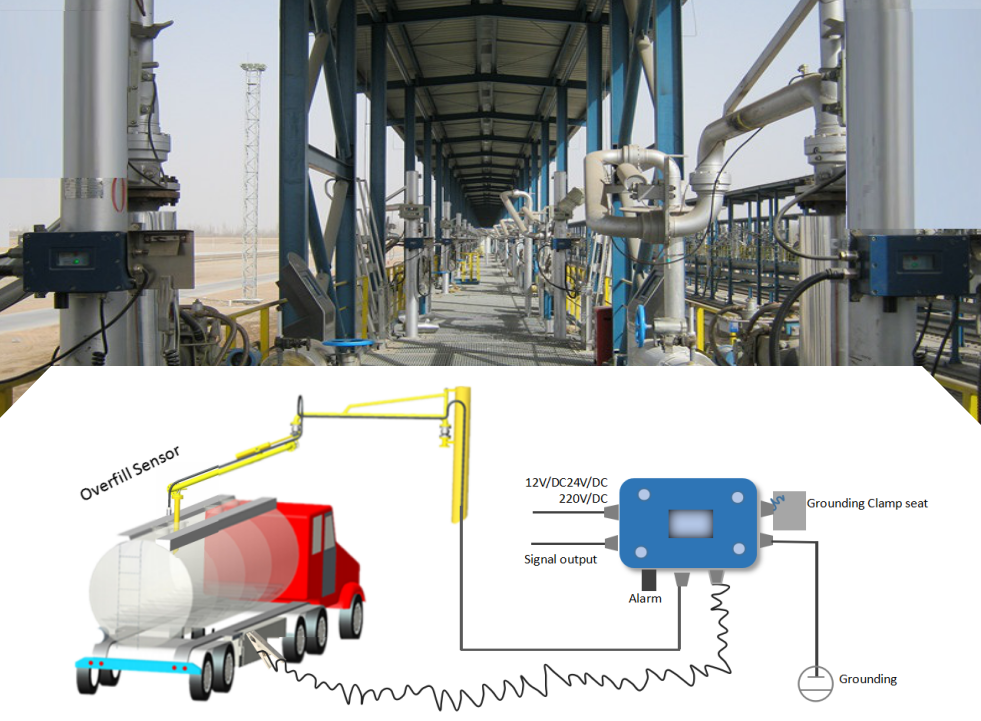

Overfill and grounding protection during a Top-Loading for truck or rail loading in petrochemical applications.
Accessories:
♦ API standard adaptor is adopted, which is compatible with international standard designs;
♦ High reliability in life span;
♦ Built-in lightning surge protection;
♦ Independent alarming for the electrostatic detection and the overfill protection;
♦ Available for both sound and light alarming;
♦ Skid mounted structure for easy installation.
| Item | Spec |
| Display | 2 LED lights, one for static and the other for overfill |
| Alarming Signal Output | 2 lines of on/off alarming outputs, optional for normal open and normal close with passive contacts |
| Power Supply | 12V/DC, 24V/DC, 220V/AC |
| Power Consumption | < 0.2W |
| Electric Resistance | < 60Ω |
| Alarming Response Time | for static electricity < 1s; for oil spill <0.4s |
| Ambient temperature | -35℃ ~+70℃ |
| Electrical Interface | 3/4 NPT*2, 1/2 NPT *2 |
| Explosion-Proof Rating | Ex d ia Ga, Ex d IIB T6 Gb |
| Dimension | 380 x 170x110 (skid-mounted) |
