Truck Mounted Overfill Probe - BJJY-CZ
Used for detecting the overfill of the truck in loading. it works with the bottom loading overfill alarming system.
• More reliable by using photoelectric sensor for detecting the level of the oil in the tank;
• It supports self-checking and self-testing functions;
• Built-in lightening protection module ensure the system working in a safe condition even in the lightening climate;
• 12V/DC power supply
Functions:

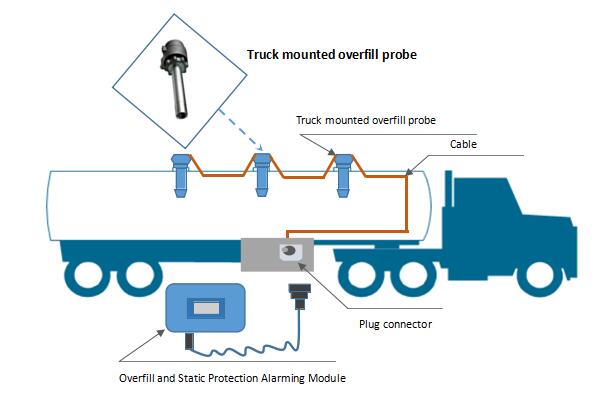

∗ This probe is used for detecting the overfill of the truck in loading. it works with the bottom loading overfill alarming system.
∗ The data generated by this probe is sent to the bottom loading overfill alarming system and loading controller when an overfill is detected, and the loading process will be immediately stopped by the loading controller.
Applications:
∗ It is used in the overfill detection and alarming system to monitor the level of the truck tank in loading.
♦ More reliable by using photoelectric sensor for detecting the level of the oil in the tank;
♦ When an overfill or malfunction/error is detected by one of the probes during the loading process, it allows a bypass loading to be activated with a loading going on for the other tank;
♦ It supports self-checking and self-testing;
♦ Built-in lightening protection module ensure the system working in a safe condition even in the lightening climate;
♦ 12V/DC power supply results in a very low power consumption;
♦ Simple and easy installation.
| Item | Spec |
| Pulse Input/Output | compatible to European standard |
| Level detection | Detecting the level of the liquid for overfill alarming |
| Range | 10-300mm |
| Ambient Temperature | -35 ℃ ~+70℃ |
| Power Supply | 12V/DC |
| Working Current | <2mA |
| Weight | < 1Kg (Aluminium) |
| Cable outlet | 2x M20 X 1.5 |
| Explosion Proof Rating | ExiaIIBT4Ga |
| Weight | < 1Kg |
